Heavy-Duty Plastic Legend Plate - 22mm AB 800F 11X Font L - 1 Line

Your discount is based on the total number of items in your order. Every nameplate, tag and legend plate can be a different size, color or text, and they all count.

Items in Order	Discount
25+	5%
50+	7.5%
100+	10%
200+	15%
400+	20%

Applied automatically in your cart and at checkout. Online orders only.

Specs & DimensionsSize, hole size, material, thickness, adhesive & text height. Printable for submittals.

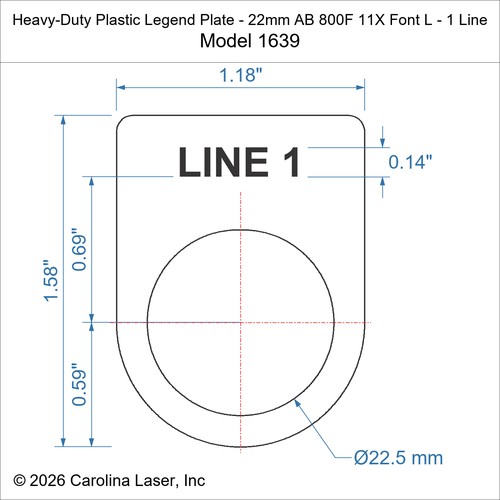

Scaled drawingHeavy-Duty Plastic Legend Plate - 22mm AB 800F 11X Font L - 1 Line

Product Details

A 1.58" x 1.18" legend plate in Heavy-Duty Plastic Adhesive Backed, laser engraved with one line of text centered on the plate. Compatible with Allen-Bradley 800F pushbuttons and selector switches. Longer text is narrowed to fit, and the live preview shows exactly how it will look.

Size: 1.58" x 1.18" (40.0 x 30.0 mm)
Text: 1 line, 0.14" (3.6 mm) tall
Material: 0.060" thick Heavy-Duty Plastic Adhesive Backed
Finish: Light Texture
Marking: Laser engraved
Mounting: (1) 0.89" (22.5 mm) hole
Backing: 3M 467MP Peel and Stick Adhesive

See all 22mm Heavy-Duty Plastic Legend Plates

Model	1639
Drawing	1639.dwg
Availability	2 business days or less
Dimensions
Height	1.58 in.	40.0 mm
Width	1.18 in.	30.0 mm
Hole Size	0.89 in.	22.5 mm
Hole Count	1
Material
Material	Heavy-duty two-ply laser-engravable acrylic
Finish	Light Texture
Thickness	0.060 in.	1.5 mm
Backing	3M 467MP Peel and stick adhesive
UV Stable	Yes
Process	CO2 Laser Engraving
Text Size
Line 1 Text	0.14 in.	3.6 mm
