Stainless Steel Legend Plate - 22mm Traditional 180 - 3 Lines

Your discount is based on the total number of items in your order. Every nameplate, tag and legend plate can be a different size, color or text, and they all count.

Items in Order	Discount
25+	5%
50+	7.5%
100+	10%
200+	15%
400+	20%

Applied automatically in your cart and at checkout. Online orders only.

Specs & DimensionsSize, hole size, material, thickness, adhesive & text height. Printable for submittals.

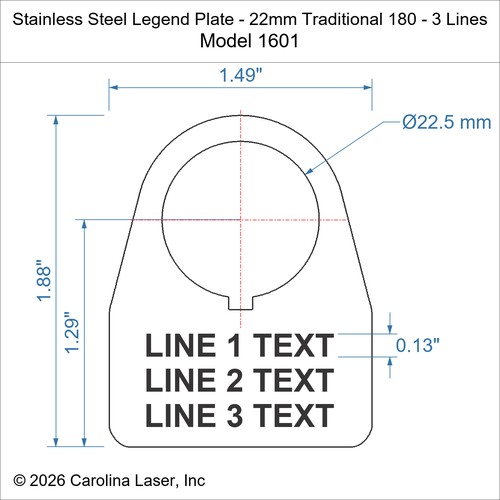

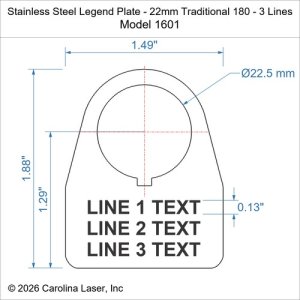

Scaled drawingStainless Steel Legend Plate - 22mm Traditional 180 - 3 Lines

Select Options

Line 1 Text

Line 2 Text

Line 3 Text

Notch

Material

Product Details

A 1 7/8" x 1 1/2" legend plate in 304 Stainless Steel (#4), permanently fiber laser marked with three lines of text centered on the plate. Traditional shape, rounded at the top and narrowing around the mounting hole. The text sits below the mounting hole. Fits 22mm pushbuttons, pilot lights and selector switches. Longer text is narrowed to fit, and the live preview shows exactly how it will look.

Size: 1 7/8" x 1 1/2" (47.6 x 38.1 mm)
Text: 3 lines, 1/8" (3.3 mm) tall
Material: 0.048" thick 304 Stainless Steel (#4)
Finish: #4 Grained
Marking: Fiber laser marked, permanent
Mounting: (1) 0.89" (22.5 mm) hole
Backing: None

See all 22mm Stainless Steel Legend Plates

Model	1601
Drawing	1601.dwg
Availability	2 business days or less
Dimensions
Height	1.88 in.	47.6 mm
Width	1.50 in.	38.1 mm
Hole Size	0.89 in.	22.5 mm
Hole Count	1
Material
Material	304 Stainless Steel (#4)
Finish	#4 Grained
Thickness	0.048 in.	1.2 mm
Backing	None
UV Stable	Yes
Process	Fiber Laser Marking
Text Size
Line 1 Text	0.13 in.	3.3 mm
Line 2 Text	0.13 in.	3.3 mm
Line 3 Text	0.13 in.	3.3 mm
